Lamp parameter
Power: 80W/18V
Material: Mono crystalline silicon
Solar cell efficiency: 19-20%
Capacity: 340WH/12.8V
Charge cycle times: 2000 times
Luminous flux: 2500-2800lm
Light output: 20W
LED qty: 60pcs
LED chip: Bridgelux 160lm/w
Color temperature: 3000-6500K
CRI: ≥70Ra
Material of lamp head: Aluminum alloy
Elevation angle: 12° (attention to Dialux use)
Lifespan: 50000hrs
Light control voltage: 5V
Light distribution: Batwing lens with polarized light
Beam angle: X-axis: 140° Y-axis: 50°
Lighting time(full charged): 2 rainy days
Operation temperature: -20℃~60℃
Top diameter of pole: 70mm
Mounting height: 4-6m
Installation spacing: 10-20m
Unique Integration Design
Easy to transport, install and maintain
Rotating Solar Panel
Solar Panel can be adjusted in vertical and horizontal direction
Charge and Discharge Management
Protect battery by software and hardware, supporting battery charge
at 0v
Light Efficiency Management
Patent led chip with high efficiency, up to 160lm/w
Microwave Motion Sensor
Radar controlled, called Doppler effect. More intelligent,
energy-saving
Control Mode Management
6 work modes for choice
Patent Bat-wing Lens
Lighting area much wider, the maximum of using the lighting all
light the road
Monitoring Management
Achieved video monitoring function, building safe village.
Parameter
| Item name | SC-NH80 | Light source |
30W
|
| Lumen | 3600-4200lm | Charging time |
5.5hrs
|
| Solar panel | 80w/18v | Battery |
340WH/12.8V (LiFePO4 Lithium)
|
| working time | 50000 hours | Warranty |
3 year
|
| Materila of Lamp Head | Aluminium Alloy | LED QTY |
60pcs
|
| Working time | 3-5 days | Packing size |
1pc /2 carton
|
4200lm IP65 LED Solar Street Garden Community Road Lamp with camera
LiFePO4 battery
6 working modes
DEMO: No matter day or night, light "on" for 1 mintue. Only for
test use.
OFF: Light "off", no matter day or night.
L: At night, 100%-1hr, 70%-3hrs, 30%-dawn.
T: At night,100%-1hr, 70%-2hrs, 40%-3hrs.
M: At night, 50%-1hr, 100%-3hrs, 30%-dawn.
At night, 100%-1hr, 70%-3hrs, then sensor working, 50%
U: if people come, 20% stand-by.
Default is L mode, once a certain mode was set successfully, it
will be reserved until you
change other modes with remote control.
Fetures of CCTV camera
1. Maxmium resolution 1920*1080
2. 1/2.8 inch SONY Exmor Sensor, capture movement image has no
serration
3. Support the digital wide dynamic, both to improve the dynamic
range,prevent the movement of the shadow
4. Intelligent 3D noise reduction, adaptive static and motion scene
5. Support digitally reduce shake, reduce the impact of wind or
vibration on the image
6. Support lens edge correction to make image center and edge
perfect
7. High signal-to-noise ratio, the image is clear
8. Support SD2.0 standard Micro DHC memory card
9. Support multiple area privacy settings
10. Support for mobile detection and network failure detection,
test and other tactics and alarm video, picture snapshot
11. Embedded Web Server, support IE preview video, parameter
configuration, equipment upgrade,user permission management
12. Built-in WIFI wireless network module
13. Realizing each frame will not leak out
14. low-power dissipation
Package
Color box packaged, camera inside lamp body box, anti-shock
packaging material, with bubble
bags and foam, ensure transport safety.
Camera Features
Common Version do not have the function of vehicle recognition.
Power consumption for common version is 2w;
Power consumption for vehicle recognition version is 4w.
Camera Size
Camera Photoes

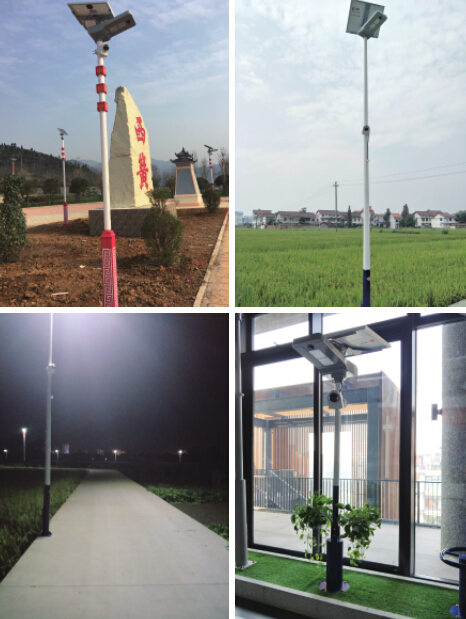

Application
Socreat Electronics Technology Limited is a high-tech joint venture
enterprise from Hongkong and
Mainland, specializing in R&D, production and sales of
intelligent LED lightings Headquarter office in Shenzhen, factory
area is about 3000 square meters. Based on "Come from nature,
create our future" conception, we are devoted to R&D,
production and sales of high quality outdoor led light, intelligent
solar street light, motion sensor led light, portable solar
lighting system.
Socreat has a professional R&D team which composes of
experienced LED driver engineers and lighting designers. We have a
solid technical strength and rich experience in product design, and
we cooperate with professors and experts from Xi'an Jiaotong
University and Xi'an University of science and technology to
provide customers the best products.
Road Smart is a new brand of Socreat company, the brand management
system in mainland officially
forming in 2016. We are sure this new brand will be super star in
the whole world, leading the development of solar street light
market. As a leader, we insist on a direction of "expert in
intelligent lighting, light up the world", keeping R&D in
intelligent lighting products and improving the quality of light.
We are creating a more comfortable, more energy-efficient, higher
quality living environment by wisdom.
